Description

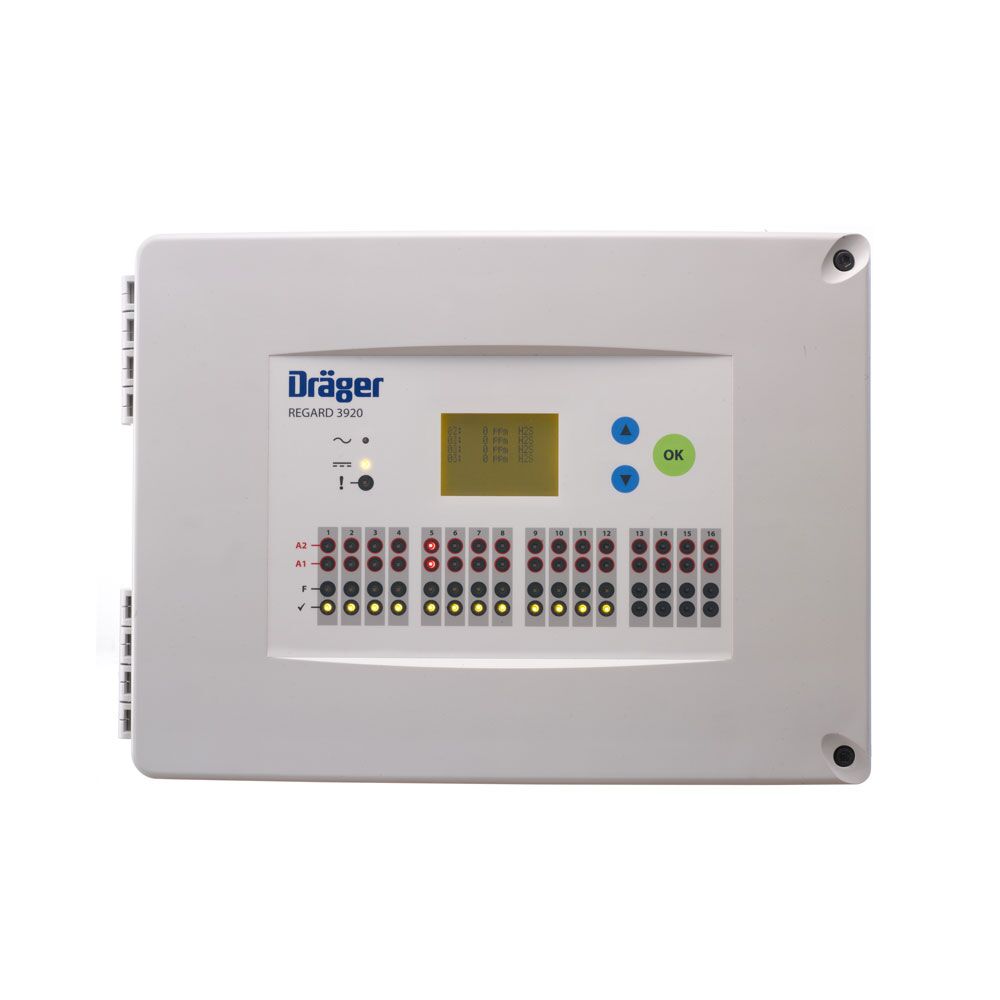

The REGARD 3920 functions as an autonomous control system designed to identify potential dangers such as Toxic and other hazardous gases. Its unique feature lies in its adaptability, allowing it to be configured for use with a varying range of channels, from 1 to 16. This flexibility depends on the installation of specific input/output boards.
It can be customized to accommodate different monitoring needs. It can focus on a single area with one channel or be expanded to cover a more complex setup with up to 16 channels. This adaptability ensures that the control system remains efficient and effective regardless of the scale or complexity of the hazardous environment it’s tasked with monitoring. Draeger REGARD 3920 offers a versatile solution for safeguarding against a range of potential safety threats.
ServeGas is a trusted dealer in Control system – REGARD 3920 in Doha and Qatar.
Benefits of Regard 3920
Flexible Design:
The modular design of the system allows versatile setup, with any number of detection points adjustable, from 1 to 16 channels. This flexibility ensures that the system can be customized to match any monitoring need and budget.
Comprehensive Hazard Monitoring:
The REGARD 3920 is capable of detecting a variety of potential dangers including toxic gases, oxygen deficiency and explosive atmospheres. This complete detection is providing total security in all areas.
User-Intuitive Interface:
The system configuration is simple with by on-board pushbutton. Features This easy-to-use interface simplifies set-up, calibration and adjustments reducing the learning curve and set-up time by using icon driven program menus without special software or tools.
Sturdy Encasement:
With robust (IP65) housing, the Draeger REGARD 3920 is designed to cope even with tough environmental conditions such as dust and water penetration. That ensures it´s reliable and robust even under tough conditions.
Adaptable Alarm Outputs:
The relay output boards are versatile when setting alarm actions. A variety of relay functions … Single , Common Vot ⢠Select from options that include single, common and voting relays, as well as inhibit or non-operating modes for configuring system responses to match your safety procedures.
Signal Replication:
The analog output board supports reproduction of signals from a maximum of eight inputs. This capability enables the sharing of important gas level information across an array of devices and throughout a facility.
Dual-Level Alarms:
The device allows the creation of two alarm levels, with increase or decrease (up/down) thresholds, in latching (high/low latch) or non-latching modes. This allows step-wise fine-tuning of the response to threats of varying severity.
Convenient Acknowledgment:
Alarm relays are easily acknowledged by a push button located on the front panel, facilitating rapid response to alarms and continued good monitoring practice.
Simplified Upkeep:
Programming logic in the design of the system and interface simplify calibration routines, zero balance and span modification. This simplifies regular maintenance procedures and helps keep the entire system more efficient.
Economical Safety Solution:
The modular design and flexibility of the Draeger REGARD 3920 offers a choice to match most budgets. Its low-cost approach to monitoring dangerous environments means that safety checks can be carried out without putting a strain on limited budgets.
Regard 3920 – ServeGas- Breaking new ground in stability and usability In ServeGas we have broken the barrier of reliability and ease of use. To complement our tailormade gas control system we have controllers in different dimensions and complexities.
