| Characteristics | |
|---|---|
| Laser | Near IR tunable diode laser Telecommunication grade lasers for longevity, reliability and availability |
| Detection Limits | sub-ppmv to % levels depending on species and application. Consult the factory for your specific application. |
| Calibration | Factory Test results sent with every unit Internal reference cell, external portable audit module, sealed or flow through cell configurations |
| Dynamic Range | 5 orders of magnitude |
| Data Storage | Internal storage & External storage via Ethernet |
| Dimensions | Open Path Telescope: 7″(W) x 10″(H) x 14″(L) Retro-Reflector: 12″(W) x 12″(H) x 8″(D) |
| Response Time | < 1 second |
| Environment Conditions | -10°C to +50°C, 5 – 100% RH, 800 – 1,200 mbar |
| Outputs and Networking | Ethernet, Six Dry-Contact NC & NO Status Relays |
| Data Logging and Displaying Software | LasIRView (with Data Review and Statistical Analysis) |
| Power Supply | +12 VDC; 1A (100 – 240 VAC @50-60Hz to +12 VDC adapter supplied) |

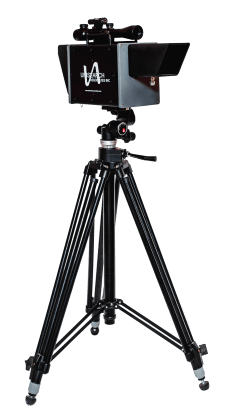

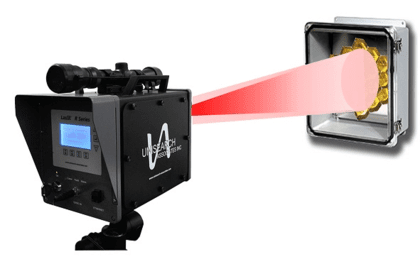

LasIR™ Laser-based Portable Gas Monitor for Emissions Monitoring
Allows for real-time measurement of target gases in a compact, weather-resistant design suitable for open-path and ambient-air monitoring.
Compact and durable, this portable gas measurement equipment allows the user to move easily from one location to the next in order to analyze gas emissions in a variety of environments.
Onboard memory allows to save data which can then be loaded into a computer for analysis.
