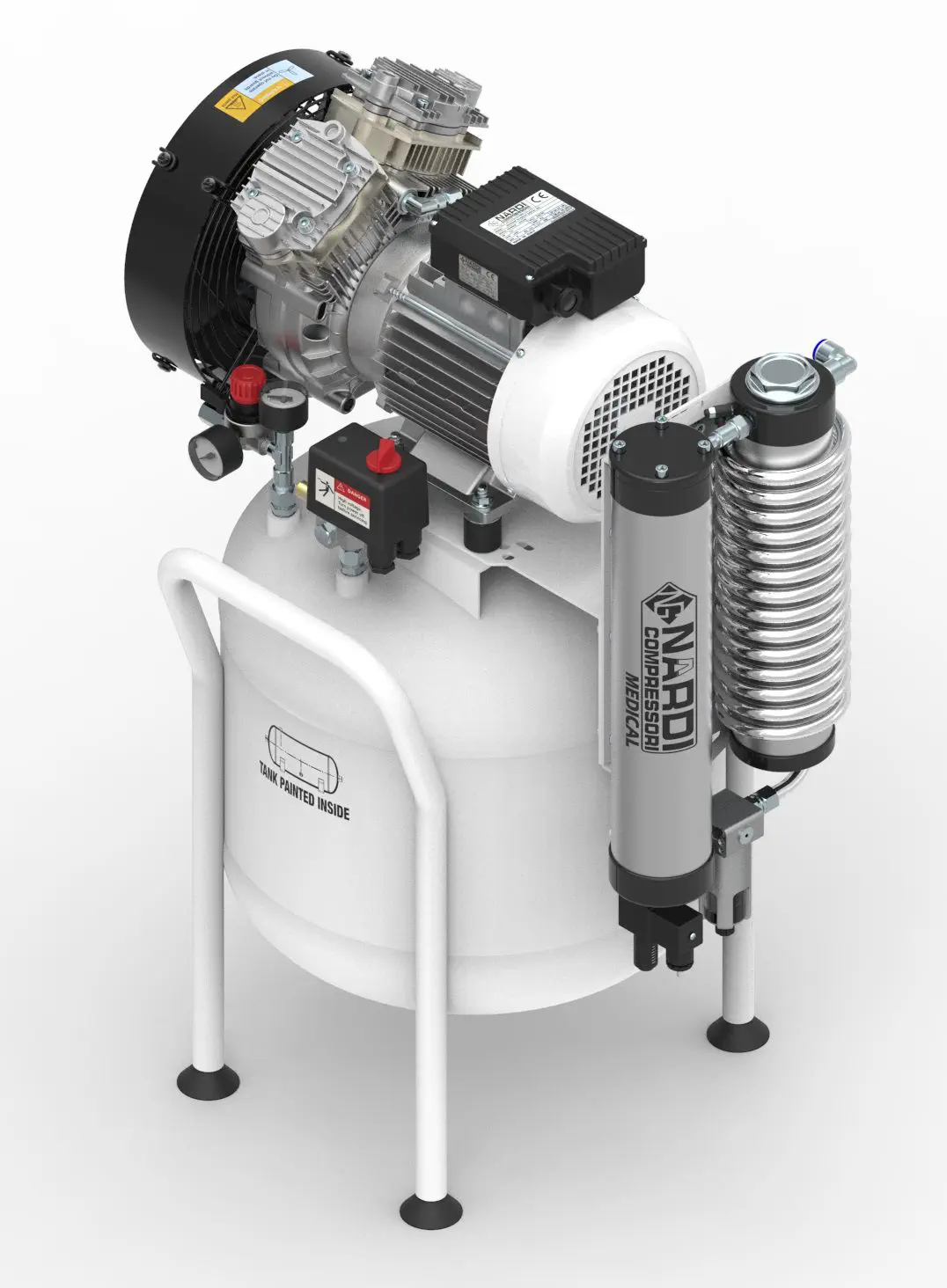

EXTREME 2D 50 L Compressor – Oil-Free & Dry for Medical Use

Description

Compressor Model	Tank	Dryer	Cylinders	Air Intake	Air delivery	Pressure	Power	Phase	Revolution	Noise	Weight	Dimensions
Modello Compressore	Serb.	Essicat.	Cilindri	Aria Aspirata	Aria resa	Pressione	Motore	Fase	Giri	Rumore	Peso	Dimension
Type	Liters	Complete	N°	l/min. – C.F.M.	l/min. – C.F.M.	Bar – Psi	HP – kW	Tipe	Rpm	dB	Kg – Lbs	cm (LxWxH)
EXTREME 2V 50L 0,75	100	X	2	350 – 12,4	156 – 5,5 (5 BAR) 127 – 4,5 (8 BAR)	8 – 114	2,00 – 1,5	Single	73	57 – 127	23 – 51	41 x 45 x 52
EXTREME 2D 50L 0,75	25	X	2	125 – 4,4	56 – 2,0 (5 BAR) 38 – 1,3 (8 BAR)	8 – 114	0,9 – 0,65	Single	1400	53	23,5 – 52	41 x 45 x 52
EXTREME 2V 50L 1,50	25	X	2	210 – 7,4	75 – 2,6 (5 BAR) 50 – 1,8 (8 BAR)	8 – 114	0,75 – 0,5	Single	2800	62	23 – 51	41 x 45 x 52
EXTREME 2D 50L 1,50	25	X	2	250 – 8,8	84 – 3,0 (5 BAR) 63 – 2,2 (8 BAR)	8 – 114	0,9 – 0,65	Single	2800	63	23,5 – 52	41 x 45 x 52
EXTREME 2V 50L 2,00	25	X	2	350 – 12,4	156 – 5,5 (5 BAR) 127 – 4,5 (8 BAR)	8 – 114	2,00 – 1,5	Single	73	35,5 – 78	46 x 43 x 66
EXTREME 2V 50L 2,50	25	V	2	350 – 12,4	156 – 5,5 (5 BAR) 127 – 4,5 (8 BAR)	8 – 114	2,00 – 1,5	Single	73	44 – 97	58,5 x 43 x 66
EXTREME 2D 50L 2,50	25	X	2	210 – 7,4	75 – 2,6 (5 BAR) 50 – 1,8 (8 BAR)	8 – 114	0,75 – 0,5	Single	2800	62	23 – 51	41 x 45 x 52
EXTREME 2V 50L 3,00	25	X	2	250 – 8,8	84 – 3,0 (5 BAR) 63 – 2,2 (8 BAR)	8 – 114	0,9 – 0,65	Single	2800	63	23,5 – 52	41 x 45 x 52
EXTREME 2D 50L 3,00	25	X	2	350 – 12,4	156 – 5,5 (5 BAR) 127 – 4,5 (8 BAR)	8 – 114	2,00 – 1,5	Single	73	35,5 – 78	46 x 43 x 66
