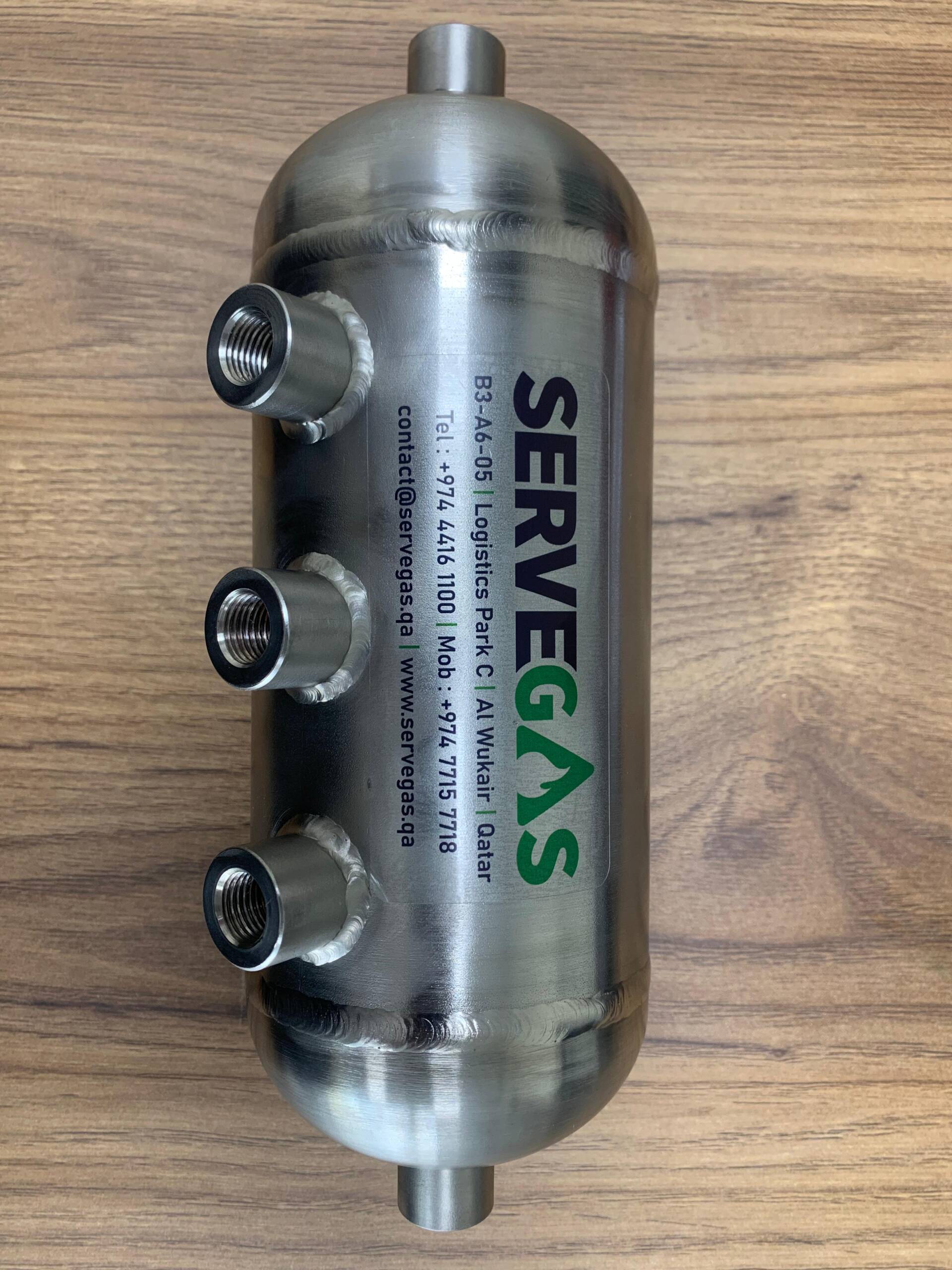

Air Distribution manifolds, also known as air and steam headers, are used to divert a single gas, air, or liquid feed line to multiple locations or devices. They are also used to evacuate unwanted fluid or condensation from the vent valve before it gets to the operating machinery and causes corrosion. Air manifolds allow for multiple connection options for isolation.
Works with our customers to build each manifold to the exact requirements needed. Each manifold is welded to exact specifications described on the production drawing developed. The body is made from welded s/40 pipe, and the ports can be a male or female orientation in the size of choice. Male ports are 3″ long threaded pipe nipples, and female connections are usually half- couplings welded to the body. On the ends we offer the option of a male, female, socket weld, or 150# raised face flanged inlet, and threaded, capped, or vent valve on the other end allowing condensation to exit the system. Ball valves and vent valves are also available to consolidate purchasing and assembly process to save time.
